Description

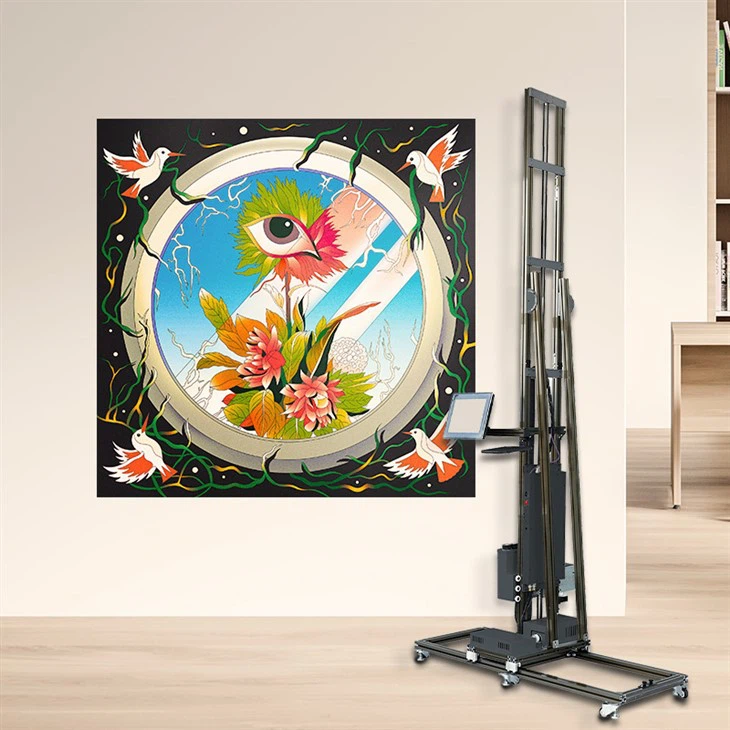

3D printer for walls and vertical surfaces
Wall printer with UV technology
A new dimension of images
The is a modern device using direct surface printing technology. Selected images are applied using nozzles located in the print head, which move approx. 1cm in front of the working surface.
The Wall Printer is a cutting-edge and versatile printing machine designed to transform interior spaces with high-quality, custom graphics and designs directly on walls and other large surfaces. This innovative wall printer offers a wide range of features and capabilities that make it a powerful tool for interior designers, decorators, businesses, and artists.
Convenient control
10.4 inch color LCD screen with built-in operating system is your command center. You can easily enter print settings, such as the height and width of the working field, import the appropriate graphic file or test each of the printer’s components.
*- Optional, standard height is 3 meters
Fast and precise printing of Vertical 3D uv Wall Printer
The use of two heads from a Japanese manufacturer Epson does not involve only with high component durability. It is also extraordinary accuracy and speed of applying images – up to 14m2/h. Moreover, the heads can be easily dismantled for transport.
3d Wall Printer Imported Nozzle.
Two different nozzles are available.
UV ink of Vertical 3D uv Wall Printer
One set of ink with 5 colors, Cyan, Magenta, Yellow, Black, White; each color 500ml; one set of uv ink costs 150usd, which can print about 400 square meters. so ink consumption is about 6-10ml/sqm. The cost is 0.5usd/sqm.
Pictures on the wall and door
The printer, thanks to the use of UV ink that dries quickly under the built-in UV lamp can print on the most popular materials such as:
➡ Filled wall
➡ wall painted with paint (preferably white to reproduce the colors)
➡ Glass windows, doors
➡ Ceramics
➡ Wood
➡ Metal
Any other non-absorbent material
Where are vertical UV printers used?
UV wall printers are widely used in interior decoration, the advertising industry and schools. The device allows to create an image with accuracy unattainable by a human hand. The printer will transfer any image – from the company logo on doors or windows to photos of children or landscapes on the living room wall.
Service
The wall printer is operated by 1 person (setup and start-up). The printer is self-propelled and moves automatically on rails. The low weight of the machine (30 kg) and rails (35 kg) allows easy transport.
Rail for uneven surfaces
A crooked or leaky floor is no longer an obstacle to a perfect print. The included rails on which the printer moves help to achieve perfect level regardless of the surface.
What are the characteristics of UV printing?
UV printing uses a special ink that is applied to selected surfaces and immediately dries under the influence of a UV lamp located just behind the head. It is the perfect solution for obtaining long-lasting and clear colors without long drying, ink flowing or color mixing.
Service
We service and provide maintenance and inspection services for wall printers throughout Poland. Our company’s 11 years of experience in automation and robotics means that any warranty and post-warranty repairs are carried out quickly and most often without returning the devices to the manufacturer. We have a spare parts warehouse and a training offer.
PresentationWe invite you to a presentation of the machine on which we can print the material prepared by you.
Training
The training can take place at our company headquarters or after delivery.
Included
The printer comes with 4 *1.5m rails, starter inks and head maintenance fluid. It is possible to purchase additional rails to increase the length of the prints.
Funding
We are flexible and ready to support if you have special requirements related to obtaining funding for the purchase of a printer
Printer features:
– Data transmission: USB 2.0/3.0
– Fastest printing speed: 15m2/h
– Heads: 2* Epson DX10/DX7 Optional
– Resolution: 360×720 dpi, 720×1080 dpi, 720×1440 dpi, 1080×1440 dpi, 1440x2880dpi
– Screen size: 10.4″ LCD
– 8GB RAM
– Rails 4*1.5m
– Max. print height: 250 cm (optional 300 cm)
– Max. print width: No limit
– Total weight: 65 kg
– Head working distance: 0.5-2 cm
– Supported formats: PSD, CDR, JPG, JPEG, PNG, BMP, TIFF, EPS, AI, PDF
– Volume: <70dBA during operation, <20dBA standby
– Operating temperature: -10-60 degrees C
– Operating humidity: 10%-80%
– Power consumption: Approx. 75W, max 250W
FAQ
Q:What Is Wall Printer And How Does It Work?
A:Wall Printer is a kind of inkjet printer, which uses CMYK(W) 5 color ink to print image directly on the wall and other vertical substrate.
Q:What Is The Difference Between Water Based And UV Wall Printer?
A:Water based wall printer uses pigment ink, which can print on the absorbent materials like plaster wall and wallpaper. While UV wall printer uses UV lamp to cure UV ink on the various material surfaces like the wall, metal, glass,
acrylic, tiles etc.
Q:What Are The Differences Between Wall Printer With One, Two And Three Printheads?
A:Multi-heads are equipped on the water based wall printer. More printheads, faster the printing speed. No effect on the printing quality.
Q:What The Size Can Print?
A: The Printing Heigh Is Up To 3 Meters High(It Depends On Different Models), And No Limited To The Length.
Q:What Are The Material Surfaces Can Print On?
A:LED UV Wall printer can print on almost any material surfaces including walls, wallpaper, tiles, metal, glass, acrylic, plastic etc.
Q:How Its Measured The Distance From The Machine To The Wall? Not Every Wall Is 100% Straight.
A:There are two ultrasonic distance sensors above and below the print head, which will automatically measure the distance to the wall.If the protrusions on the wall are smooth, the print head can automatically adjust the distance to the wall within the range of 2-3cm. Sharp protrusions will damage the print head. Currently wall printers are mainly used on flat walls.
Q:Should I Treat The Surfaces Before And After Printing?
A:There is no need to treat the wall before printing.
We suggest to treat the surfaces with coating before printing such as glass, acrylic, metal, plastic.
Q:How Long Can The Printed Image Last On The Wall Indoors And Outdoors?
A:According to the process of construction, it can keep 3 to 5 years without fading for outdoors, and 10-15 years for indoors, waterproof.
Q:What Is The Meaning Of 3D? Inkjet Printer Can Print 3D Pictures On The Wall?
A:Don’t be fooled by the “3D effect”. It is nothing to do with the wall printer, it depends on the image effect. The “3D effect” is just meaning the image on the wall looks like 3D, not the real 3D which you can touch and feel.
Q:What The Type Of Ink Does Wall Printer Use? How Can I Buy It?
A:LED UV curable ink or help you to source the ink in your local.
Q:What The Other Consumables Does The Wall Printer Need Other Than The Ink?
A:You need to replace the printhead and the damper, they are the regular consumables for the wall printer. We will put some other spare parts for the printer in your initial order.
Q:What Kind Of Image I Can Use To Print?
A:You can print the image with JPG, PNG, TIFF, PDF format.
Q:What Are The Software In The Printer? Do I Need To Pay For Them?
A:The RIP software is Ultraprint and BetterPrinter. These two software are free and permanent.
Q:Can The Image Be Resistant To Scratch? Is It Waterproof?
A:The image is resistant to scratch and it is waterproof. You don’t need to worry about raining outdoors.
Q:How Can I Get Technical Support When I Have Some Issues On The Wall Printer?
A:You can contact our engineer through WhatsApp, WeChat, Telegram, or Email. They will reply you in a very short time.
Q:How Can I Order The Spare Parts?
A:You can contact your sale manager through Email to order the spare parts. You will have the invoice to pay including shipping cost by FedEx.
Q:Does The Wall Printer Has Warranty?
A:Yes, your wall printer has one year warranty. For more details, please contact our sales manager.
Q:What Is The Quality Of Printing?
A:The printing resolution is up to 2880dpi, you can also choose 1440dpi, 1080dpi, and 720 dpi.
Q:How To Place An Order?
A:Please contact us via Email, our sales manager will contact you to confirm the specifications with you. We can arrange the shipment for you.
Q:How Do You Ship The Printer To Us?
A:There are four options for you to choose: By air, by ocean, by train or by truck on land.
Q: How Much Ink Does It Cost To Print One Square Meter?
A: The cost is $ 0.5-1 per square meter. Look at the specific print content. Simple pictures use very little, complicated patterns are slightly more, and the more colors are used and the inks are used more.
Q: How Much Is A Group Of Ink? How Many Square Meters Can Be Printed? Where Can I Buy Ink?
A: A set of ink is $150 for in 5 bottles in One group. It can print about 400 square meters, depending on the complexity of the printing.
Generally, you can buy ink from the manufacturer. The quality is guaranteed, and you can use it from outside. The main reason is that the color is not as bright as the original manufacturer. The color saturation of the original printing is very good, and the customers prefer the original products.
Q: If I Buy The Wall Painting Inkjet Printer To Do Work For The Client, What Is The Charging Standard?
A: It can be calculated by wallpaper or by one square meter. Generally, it is calculated by square meters. Outdoors are generally between $ 30 ~ 60 per square meter, and indoors are generally between $40~ 90 per square meter. Tile walls and glass walls are a bit more expensive. The specific amount depends on your local market environment and how much your customers can accept. If you think you can make money, you can set a price for him. That’s it.
Q: I Have A Low Level Of Education And No Experience. Can I Learn How To Use Machines?
A: Our high-definition wallpaper inkjet printer is easy and quick to operate. You can get started in 20 minutes, set the wallpaper size, and put it into the machine by USB and press the print to start, no experience is required. In addition,
we will send engineers on-site training or video teaching training to teach you the operation of the machine by hand. You can learn how to print pictures in one hour. If you learn slowly, we can train you on the internet.
Q:What Kind Of Market Is There For Printing?
A:Given the nature of vertical printing, we find a new application almost every week. Types of customers we’ve seen success with are:
Museums and Art Galleries
Hotels
Schools
Hospitals
Property Management Companies
Architectural Firms
Residential
Restaurants and small businesses
Art applications
Canvas prints
And more!!
Q:How Do I Remove A Print?
A: On a painted surface – two coats of paint and it’s gone!
On glass or ceramic – a paint scraper or razor blade can be used.
Wood – can be painted or sanded.
Metal or concrete – sand or dry ice blasting technology.
Q:What Can It Print On?
A:Thanks to the UV cured ink, the wall printer can print on nearly any substrate. We have examples on plaster, wallpaper, wood, brick, paint, stone, plastic, glass, most tiles and many more.
Q: What Are The Advantages Of Your Machine And Other China Suppliers?
A: Our machine has built-in industrial computers into the machine, so customers don’t need to buy another laptop to connect to the machine. Our machine is equipped with an ink baking lamp, and the machine is used as a painting baking lamp while drying the painted paintings, which can achieve the effect of drying immediately. Our machines are equipped with silent rails, and there is no noise in the printing screen. The transportation is very easy.
Our machine can print white ink, which is equivalent to a UV flatbed printer that can print any material such as acrylic, wood, glass, mobile phone case, etc.
